FWDM Optical Filter T1550R1310/1490 1X2 WDM With SC Connector for CATV FTTH

Name: FWDM Optical Filter T1550R1310/1490 1X2 WDM With SC Connector for CATV FTTH
Brand: YINGDA TECHNOLOGY LIMITED
SKU: 1*2 couplage FBT 15%:85%
Price: 2.10 USD
Availability: InStock

Nom De Marque:	Yingda
Numéro De Modèle:	1*2 couplage FBT 15%:85%
Nombre De Pièces:	100 pièces
Prix:	1.1USD-4.58USD
Délai De Livraison:	7 jours
Conditions De Paiement:	T/T, Western Union, Monégramme

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Chine

Certification:

ISO

reflection:

1310/1490nm

transmition:

1550nm

connector type:

SC/UPC SC/APC

fiber type:

SMF-28e

package:

blister box, 1pc/ box

Type:

FTTx Solutions

Application:

PON System

Ports:

1x2

Détails d'emballage:

1 pièce par boîte, 10 pièces par boîte principale

Capacité d'approvisionnement:

20000 pièces par mois

Mettre en évidence:

SC Connector FWDM Optical Filter

1X2 WDM

T1550R1310/1490 FWDM Optical Filter

Description du produit

Description

The WDM passive components, based on thin film filter technology, combine all network services/signals over a single fiber. Low insertion loss and high isolation between channels ensures reliable network performance.

YINGDA Photonics supply various wavelength Filter WDM with Stainless steel tube, ABS box, LGX cassette, 1U Rackmount ect.

Customized wavelength Filter WDM is available.
* 1310/1490/1550nm FWDM - for PON, FTTX and test instrument

*1310/1550nm FWDM - for WDM or DWDM optical communications
* 1310/1550/1625nm FWDM - for testing active fibers in service
* 1310/1490/1550/1625nm FWDM - for combining or separating 1625nm channel with three triplex wavelength 1310nm, 1490nm and 1550nm
* 1480/1550nm FWDM - for high-power DWDM optical amplifier and EDFA
* 1510/1550nm FWDM - for DWDM multi-channel optical networks
* 980/1550nm FWDM - for high performance DWDM optical amplifier and EDFA amplifier

 * GPON, XGPON, RF Vedio for Next-Generation System

* Many connector are avabilable. SC APC,SC UPC, LC APC,LC UPC...

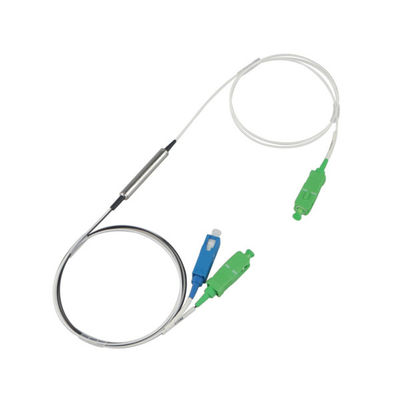

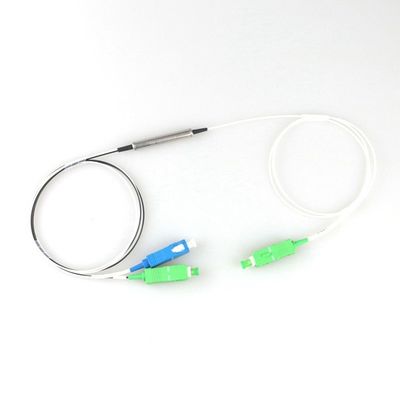

FWDM Optical Filter T1550R1310/1490 1X2 WDM With SC Connector for CATV FTTH 0

Features

Low insertion loss

High isolation

High stability and reliability

Application

Fiber laser

Fiber amplifier

Testing equipment

1×2 FBT splitter is with 1fiber input pigtail and 2 fibers outputs, and the device to connector both pigtails are not chip (for PLC Splitter) but welding machine to make them fused together, and outside the joint there is a stainless steel tube to protect it.

Specification

1*2 SC APC FWDM Insertion Loss Conversion Chart

Parameters	Unit	FWDM Device
Operating Wavelength T: transmission wavelength R: reflection wavelength 1310±50,1490±10, 1550±10 1610±10, 1625±25, 1650±20	nm	1	T1550 R1310/1490
		2	T1490 R1310/1550
		3	T1310 R1490/1550
		4	T1550/1610 R1310/1490
		5	T1550/1625 R1310/1490
		6	T1625 R1310/1490/1550
		7	T1650 R1310/1490/1550
Insertion Loss	dB	Transmission: ≤ 0.6
		Reflection: ≤ 0.4
Transmission Channel Isolation	dB	≥ 30
Reflection Channel Isolation	dB	≥ 17
PDL	dB	≤ 0.1
Wavelength thermal stability	nm/℃	≤ 0.003
Insertion loss thermal stability	dB/℃	≤ 0.005
Return loss	dB	≥ 45
Optical Power	mW	≤ 500
Operating Temperature	℃	-10 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Dimension	mm	Φ5.5×35		90×20×10
Note: 1. Customization is available. 2. Specified without connector, and add an additional 0.2dB loss per connector

100% Quality test:

FWDM Optical Filter T1550R1310/1490 1X2 WDM With SC Connector for CATV FTTH 1

No-dust Workshop High Temp.Ageing&High Low Temp cycling

FWDM Optical Filter T1550R1310/1490 1X2 WDM With SC Connector for CATV FTTH 3

100% Testing Before Shipment Optical Spectrum Analysis
